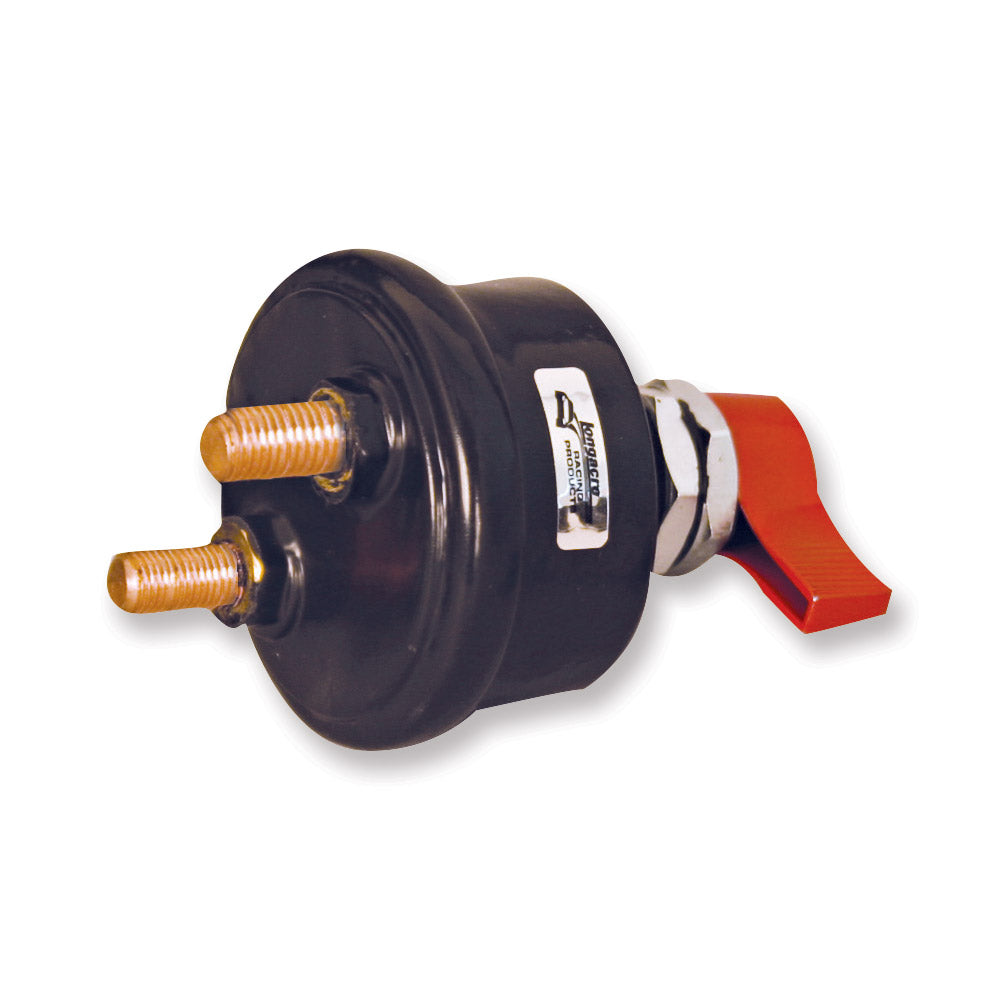

The backside of the switch is completely sealed and weatherproofed with a tough, waterproof polymer coating. Keeps out dirt, dust and moisture!

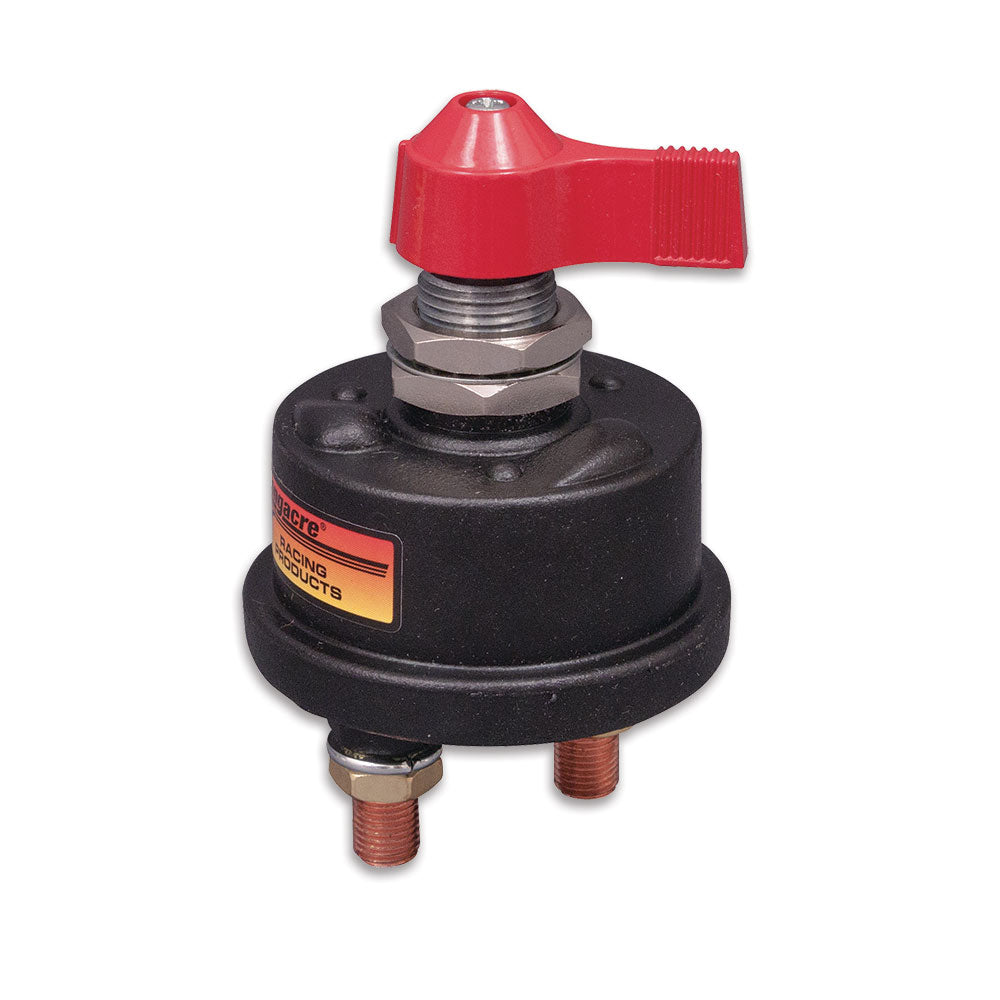

- Manual battery disconnect switch with a bright red handle
- Easier to find in an emergency
- Prevents battery drain
- 175 amp continuous rating, 6-36 volt, 1000 peak

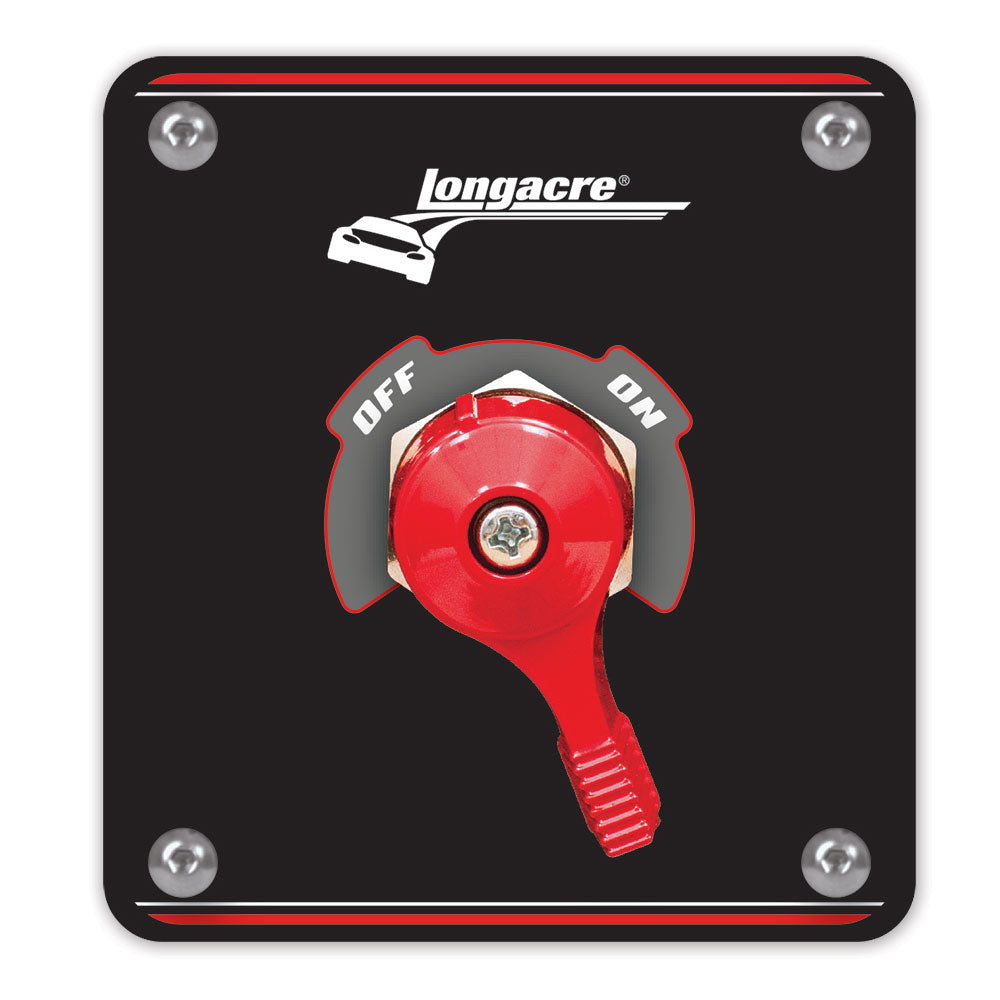

- Great looking Aluminum Panel - black anodized with clean, modern graphics

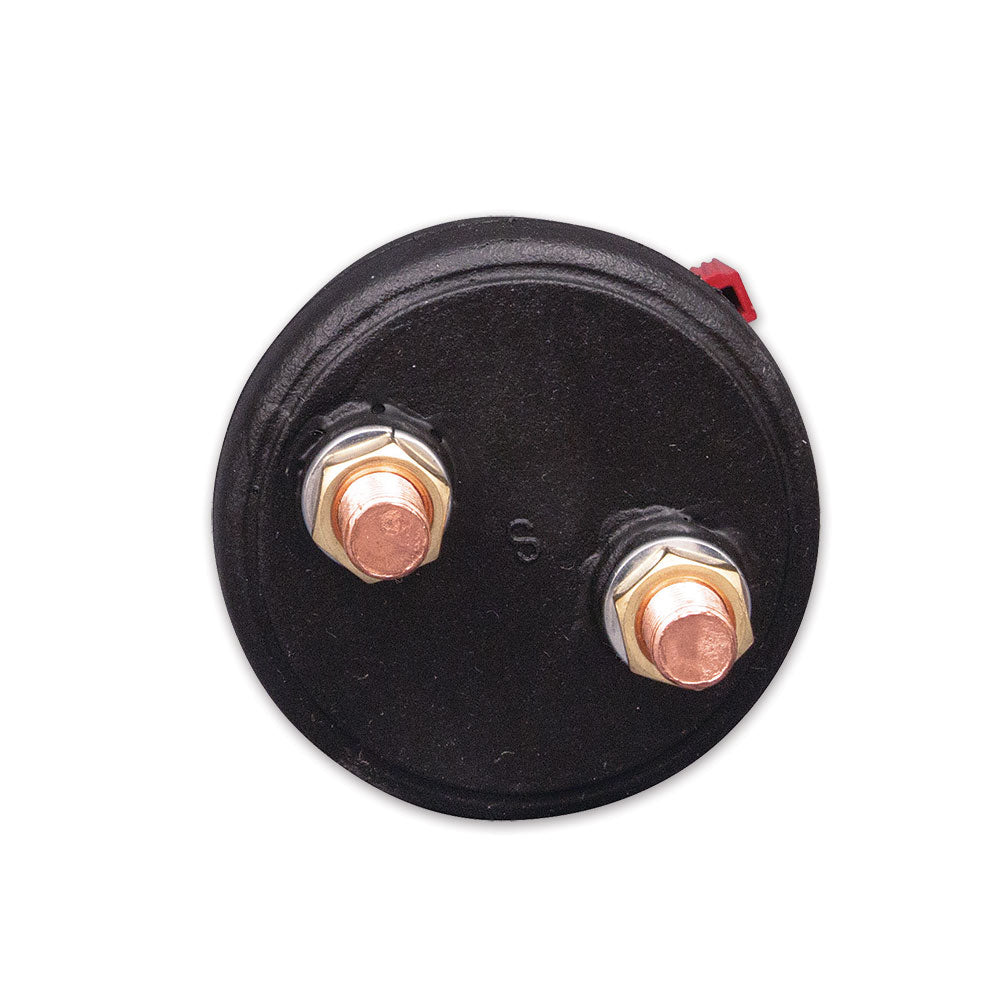

- Back of switch is weatherproof
May require drilling a 3/4" hole
| Specifications | ||
| Switch | ||
| Switch Activation: | Manual | |
| Switch Actuation: | Rotary | |
| Voltage Rating: | 6-36 volts | |
| Continuous Amperage Rating: | 175 amps | |
| Peak Amperage Rating: | 1000 amps | |
| Alternator Disconnect Included: | No | |
| Weatherproof: | Yes | |
| Mounting Panel Included: | Yes | |
| Mounting Hole Size: | 0.730" | |
| Body Diameter (At largest point): | 2.647" | |
| Body Depth (From end of threads to lock washer): | 2.980" | |
| Overall Depth: | 4.216" | |
| Stud Size: | 3/8" | |
| Panel | ||
| Material: | Lightweight aluminum | |
| Finish: | Black anodized | |
| Dimensions: | 3 3/8" x 3 5/8" | |
| Fits Longacre Panel Bracket: | No | |
