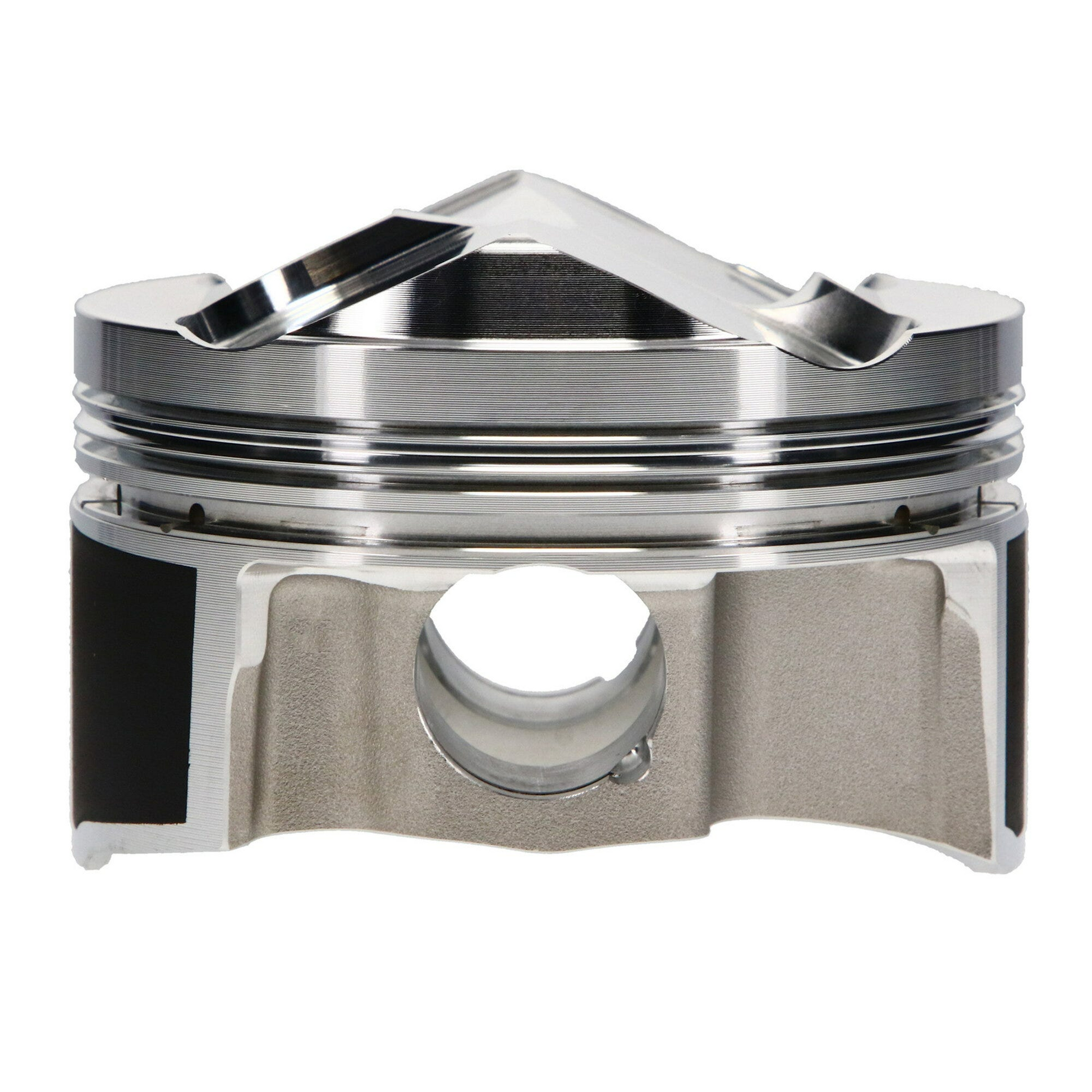

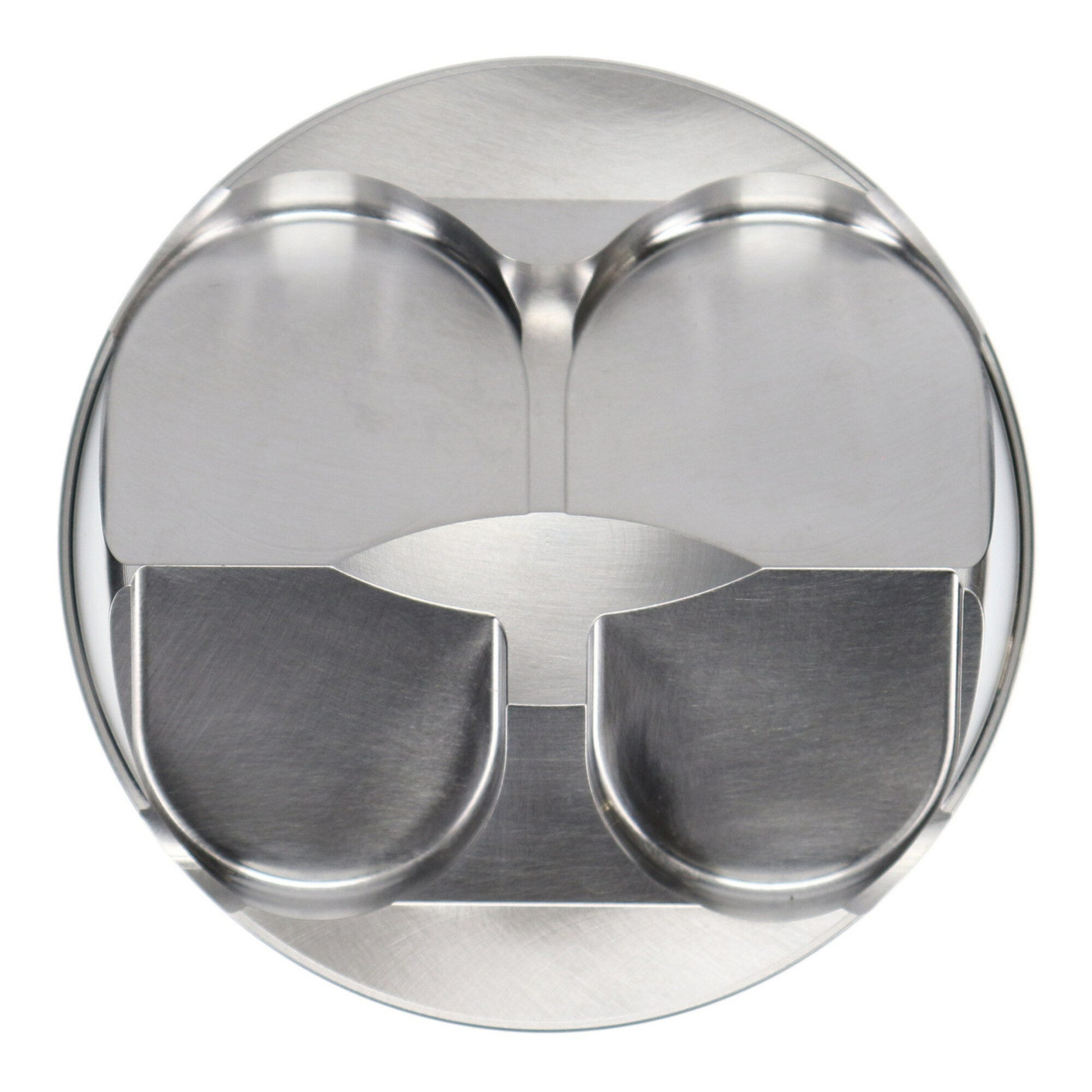

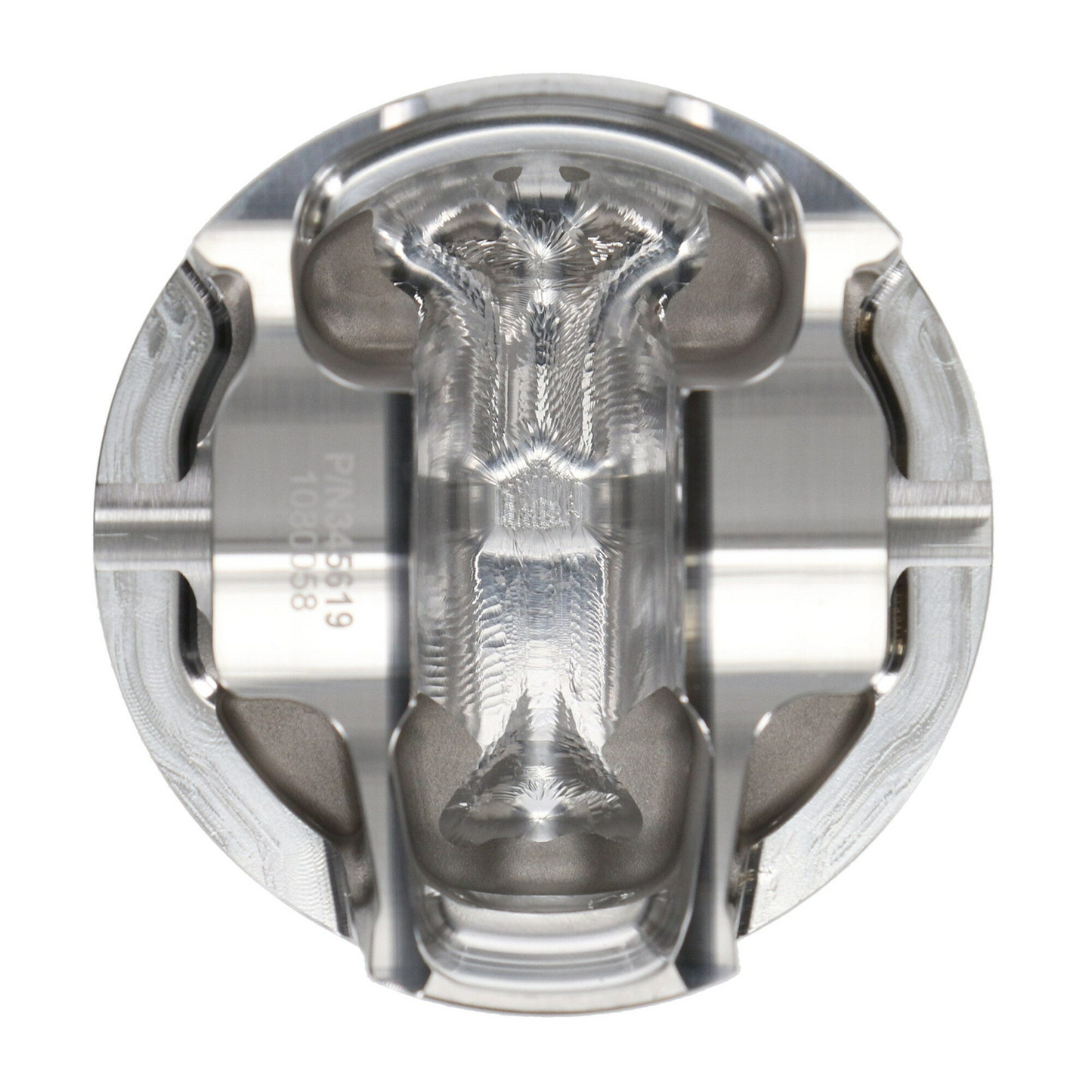

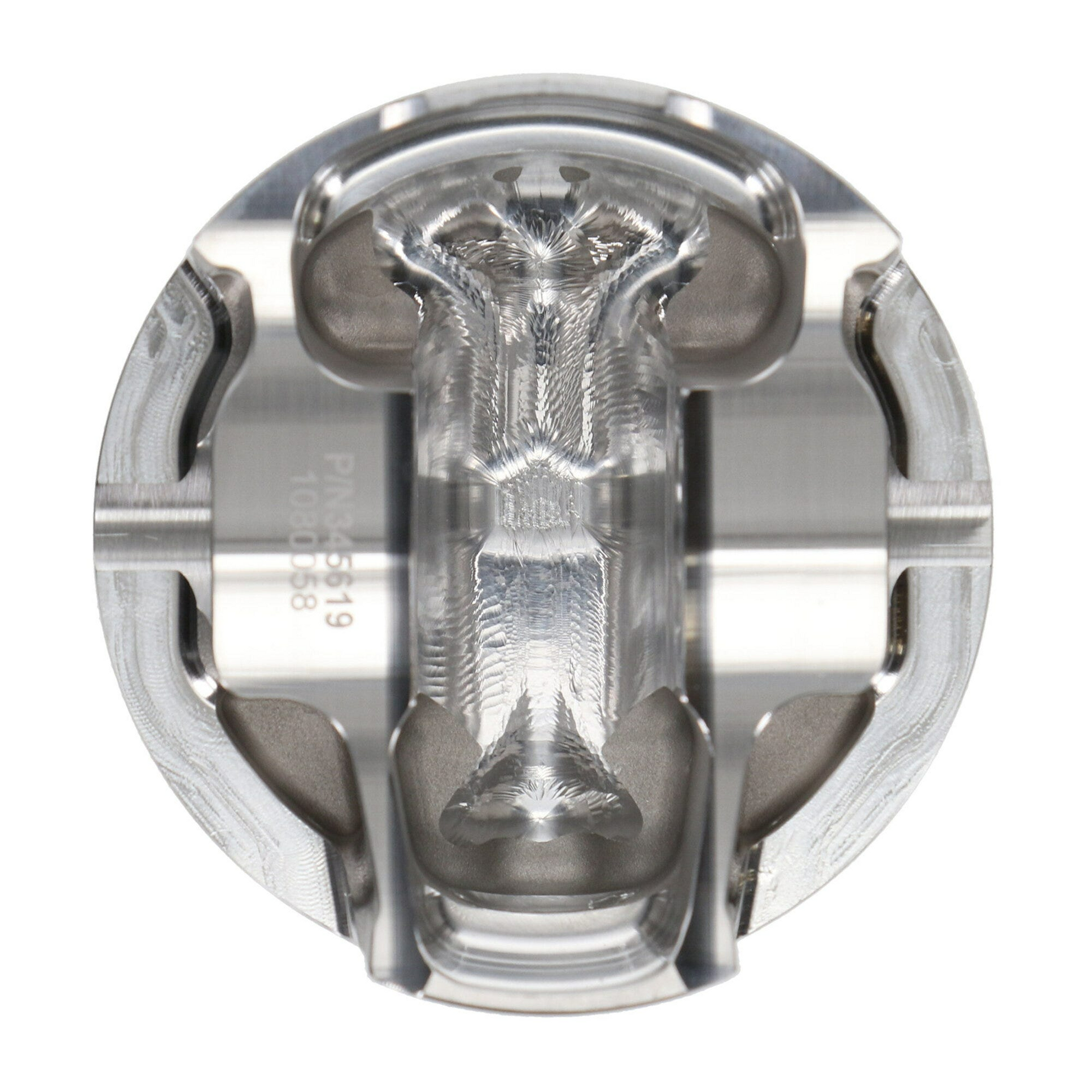

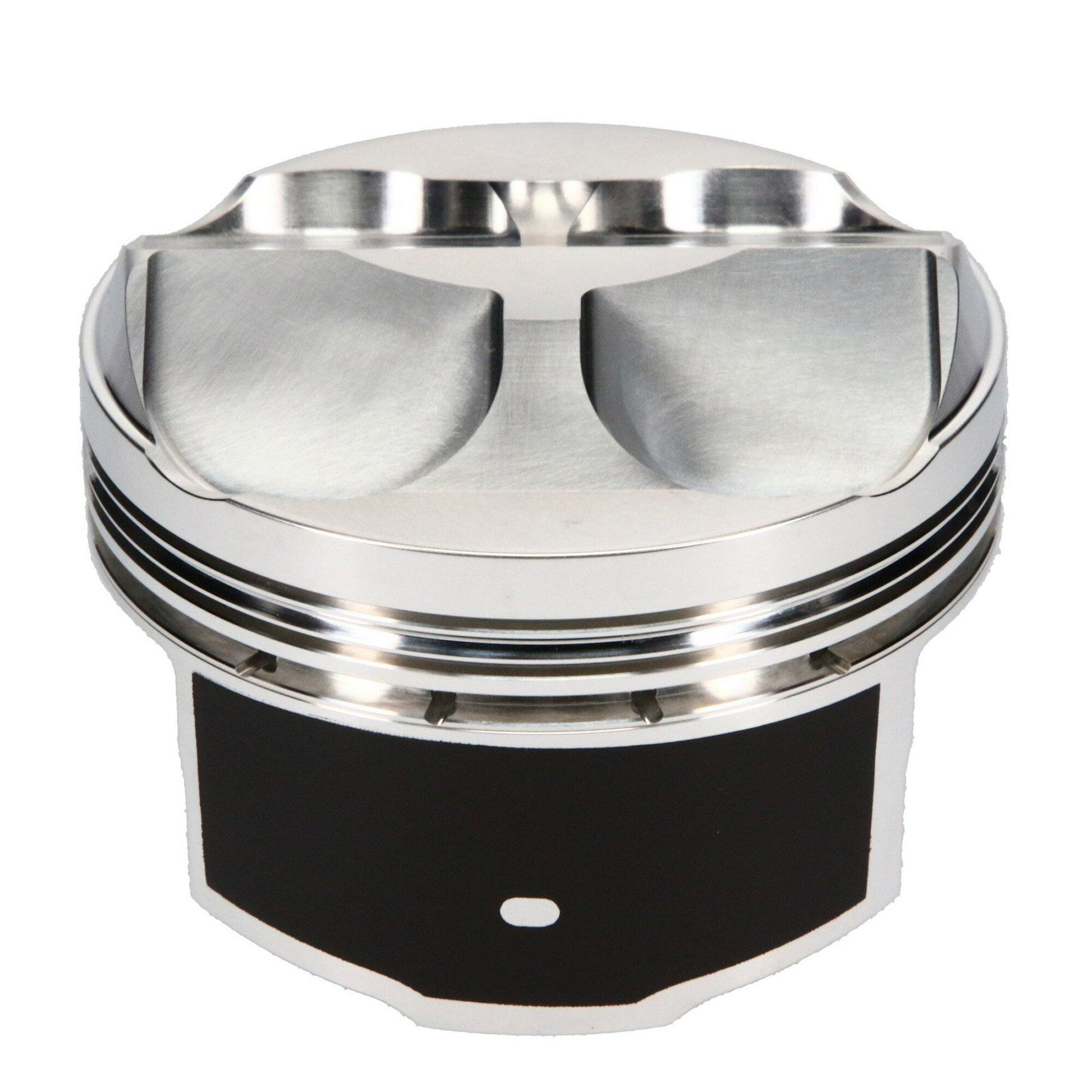

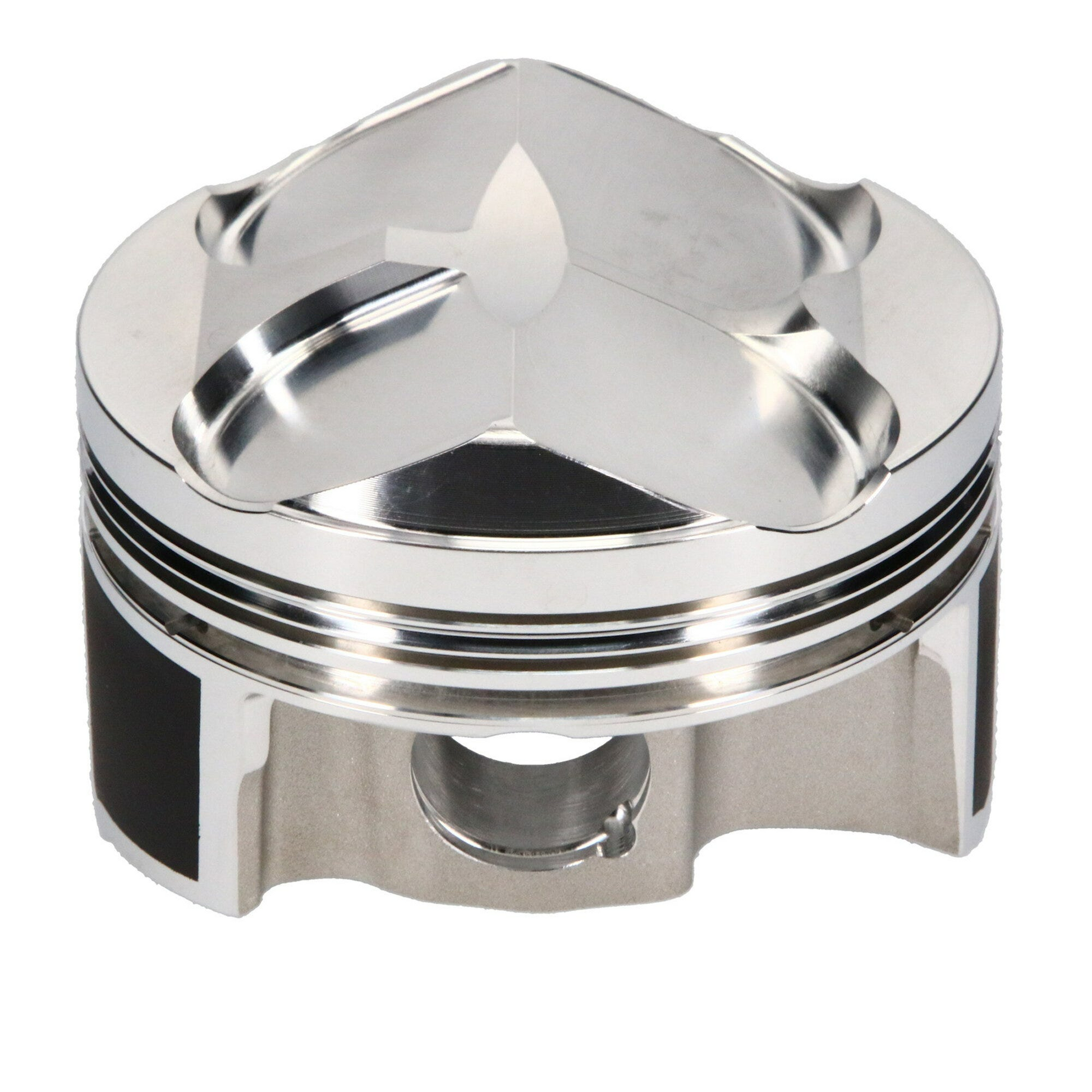

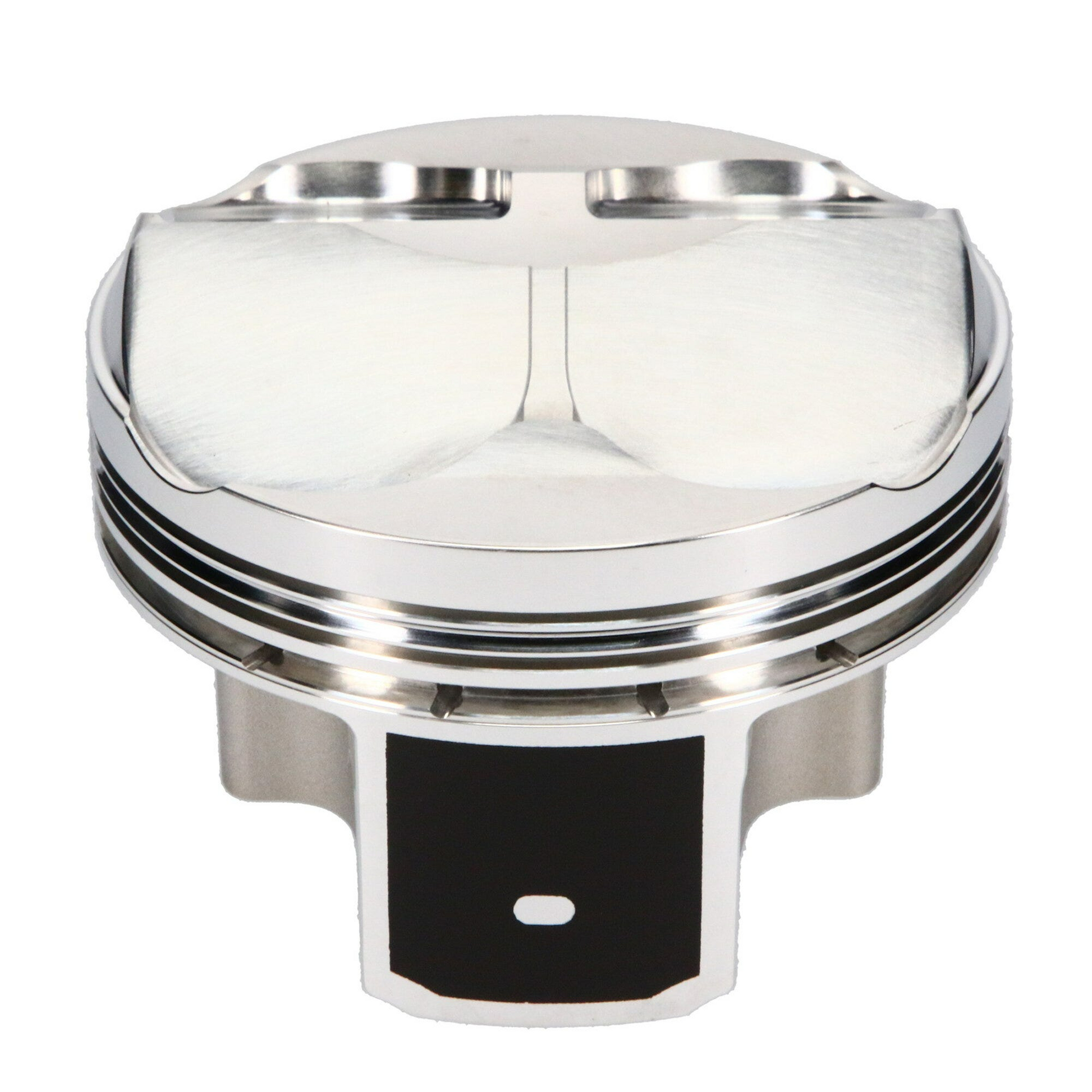

JE, Honda, K Series, 3.504 in. Bore, 12.50:1, Dome, 4 Cyl. Piston Kit
| Bore Diameter | 89.00 |
|---|---|
| Compression Height | 1.176 |
| Piston Head Type | Dome |
| Piston Volume | 3 |
| Cylinder Head | K20 |
| Piston Pin Outside Diameter | 0.866 |
| Piston Pin Length | 2.250 |
| Piston Pin Material | 5115 |
| Ringset Included | Yes |
| Top Compression Ring Thickness | 0.04 |
| Second Compression Ring Thickness | 0.048 |
| Oil Ring Thickness | 0.111 |
| Piston Material | 2618 |
| Forging Type | FSR |
| Pin Wall Thickness | 0.180 |
| Product Market | Sport Compact |
| Product Types | Engine Piston Set |
| Prop 65 Yes/No | Yes |
