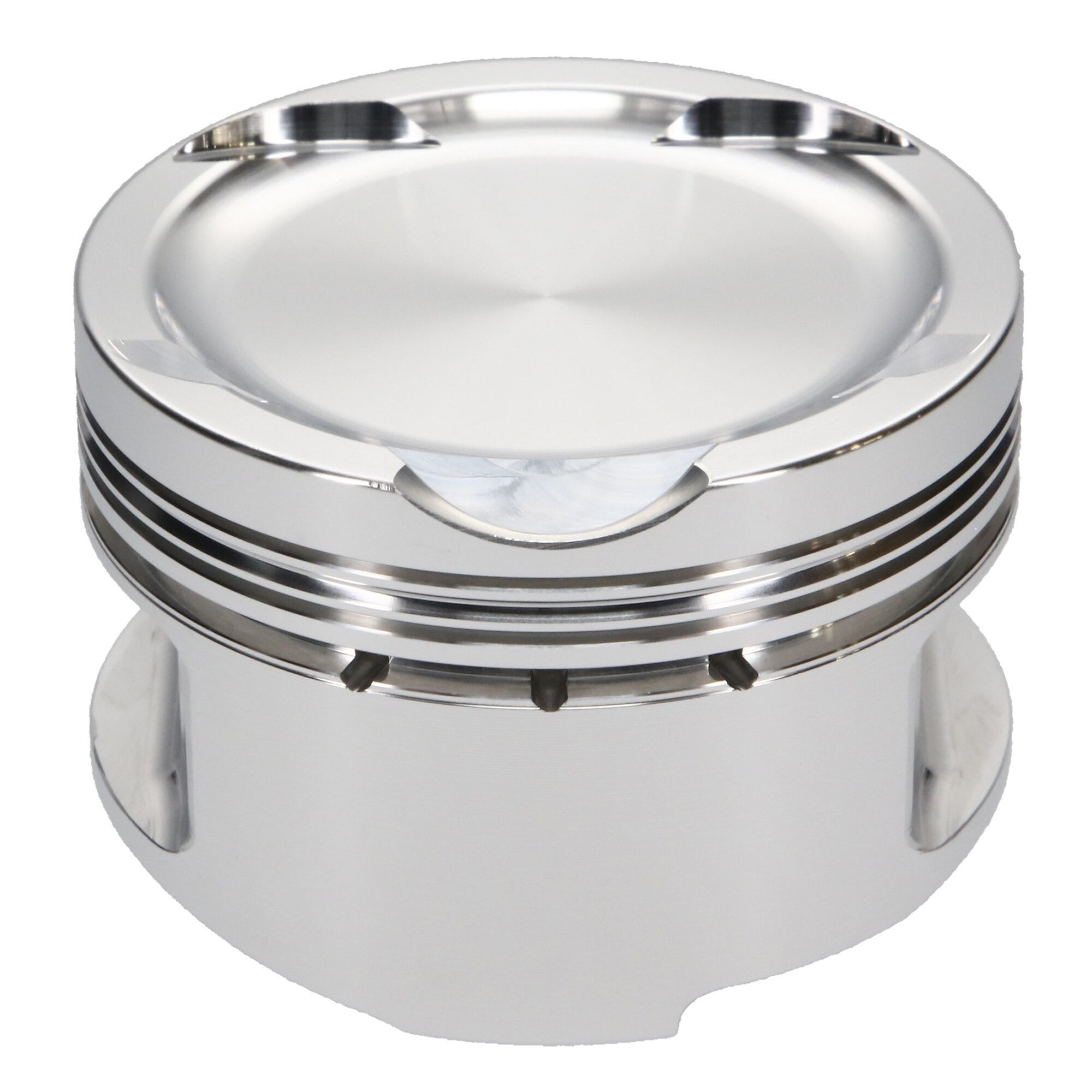

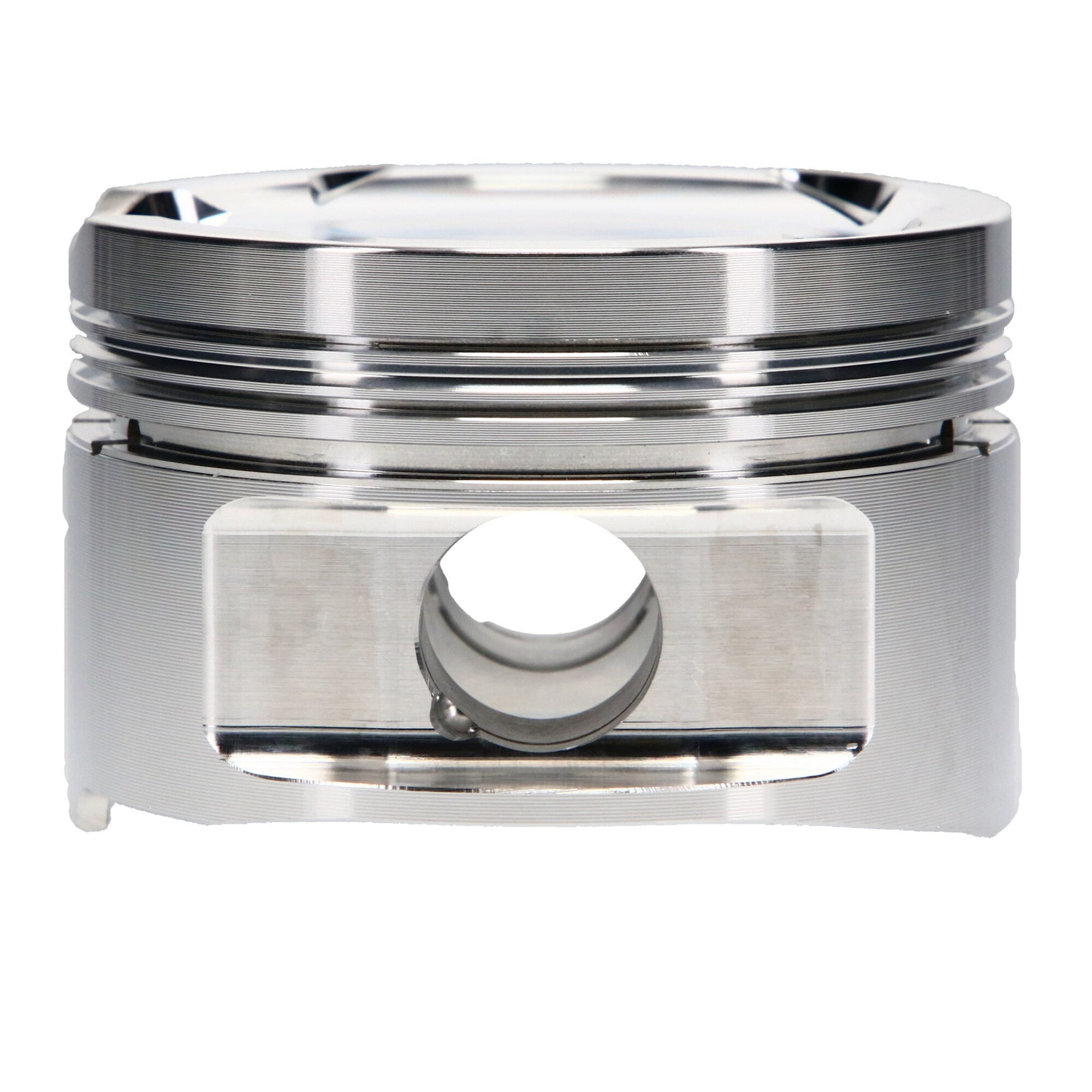

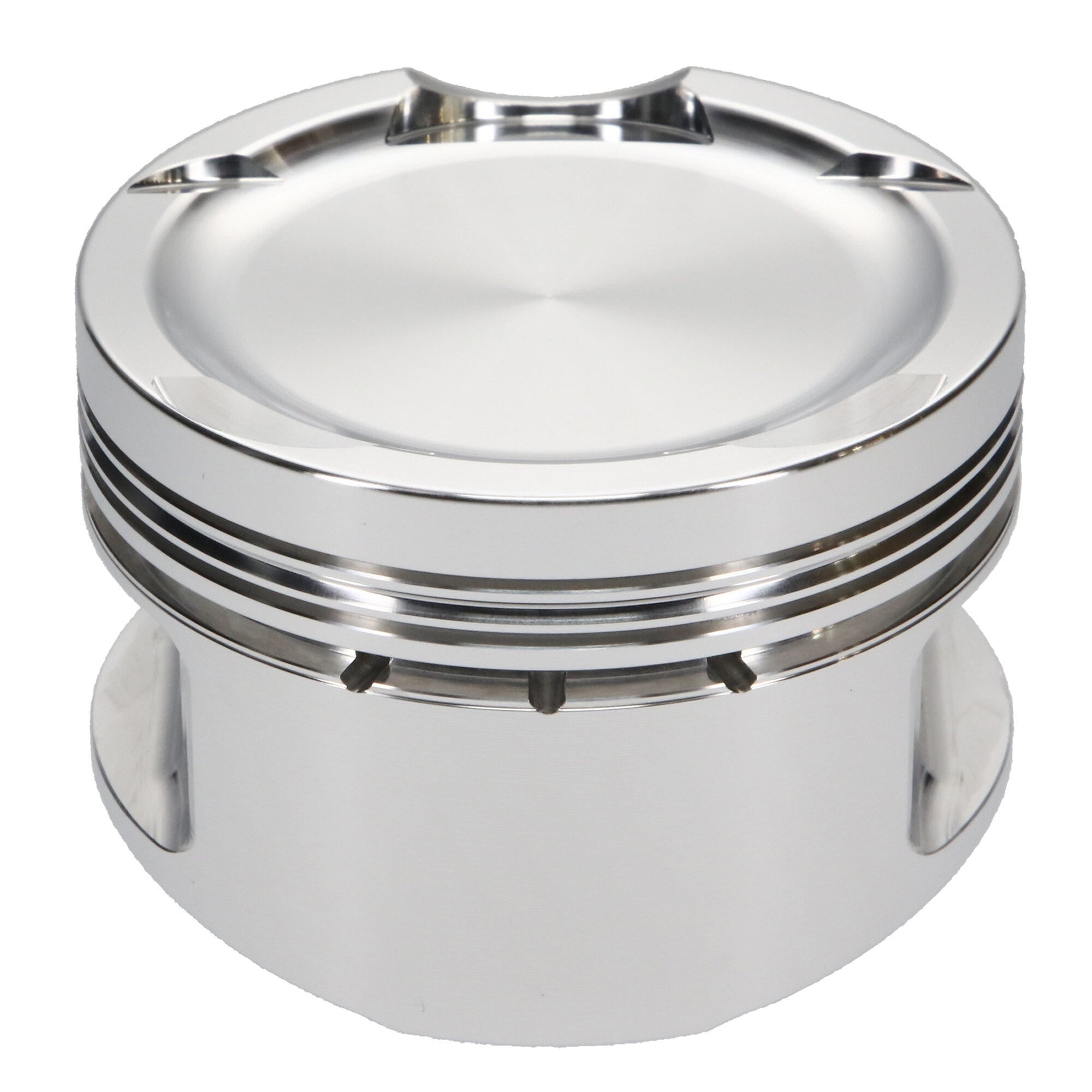

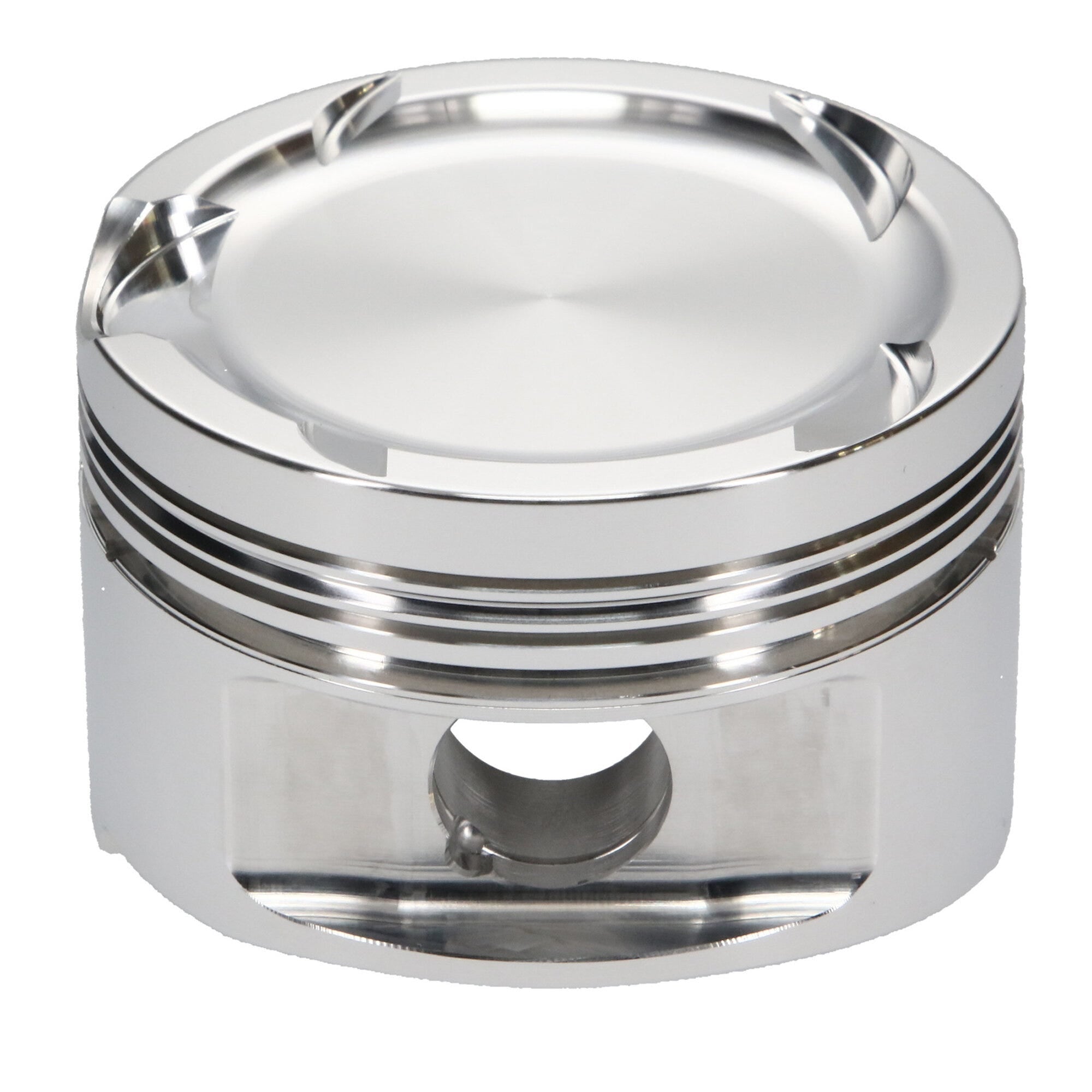

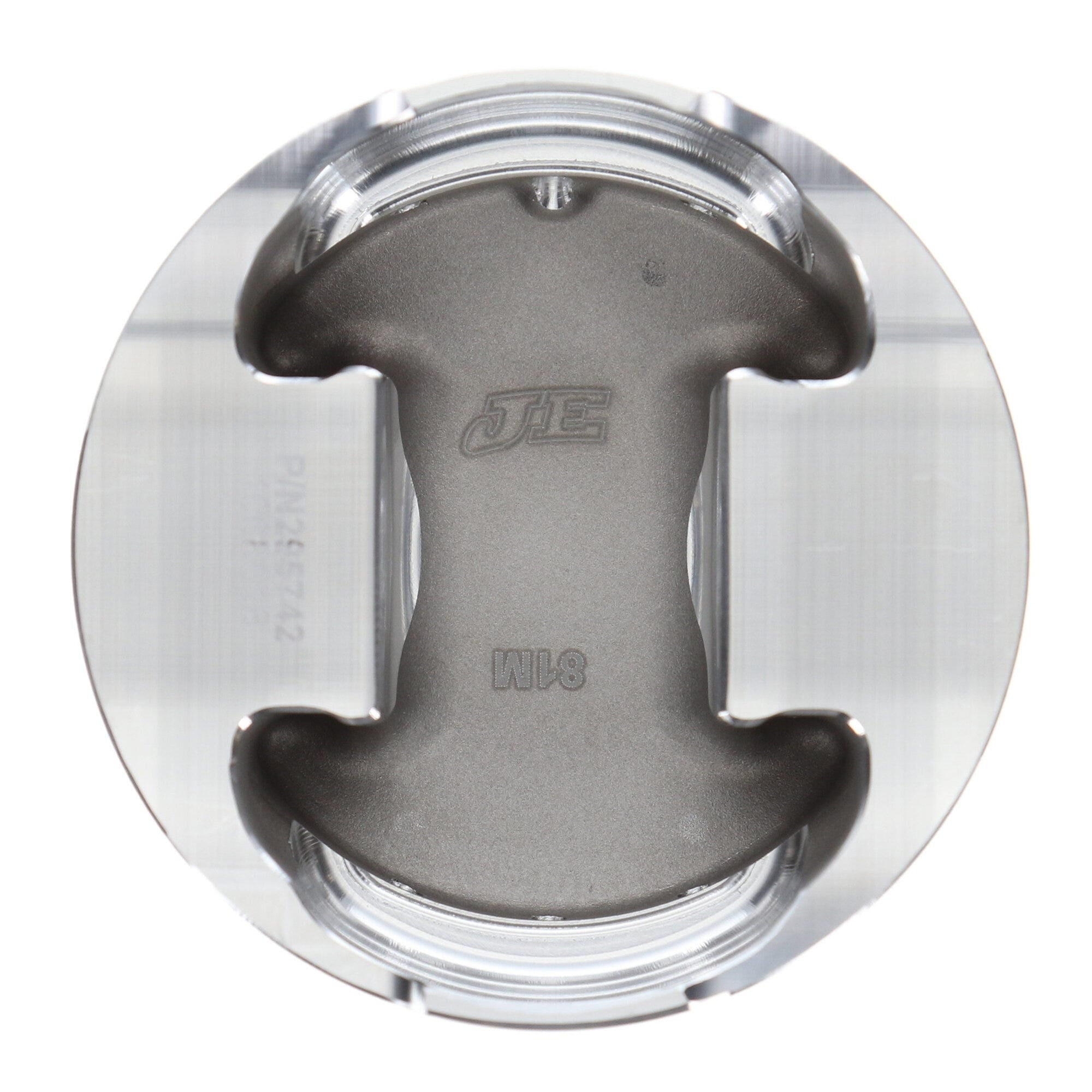

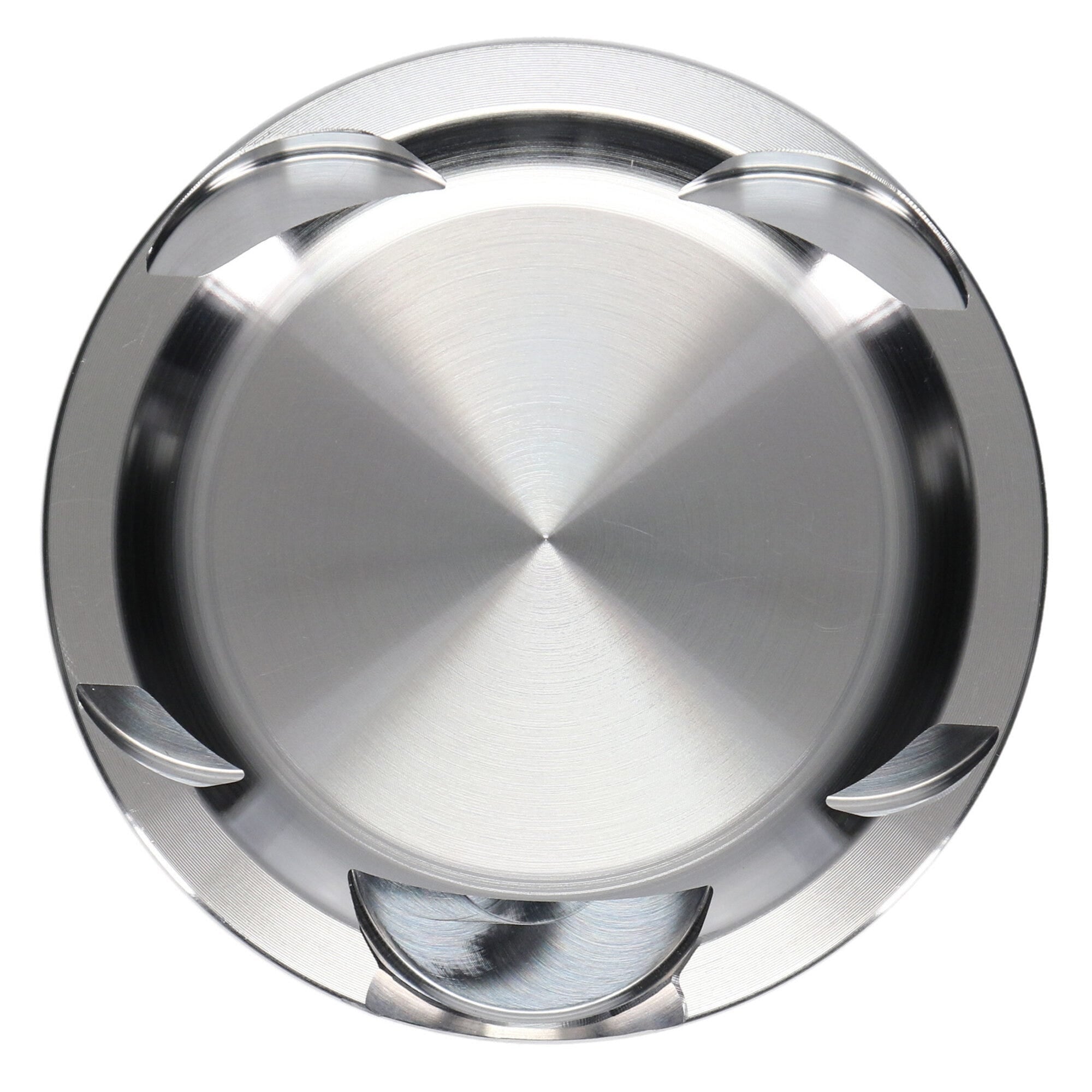

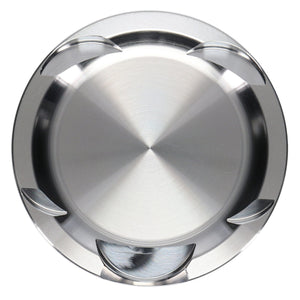

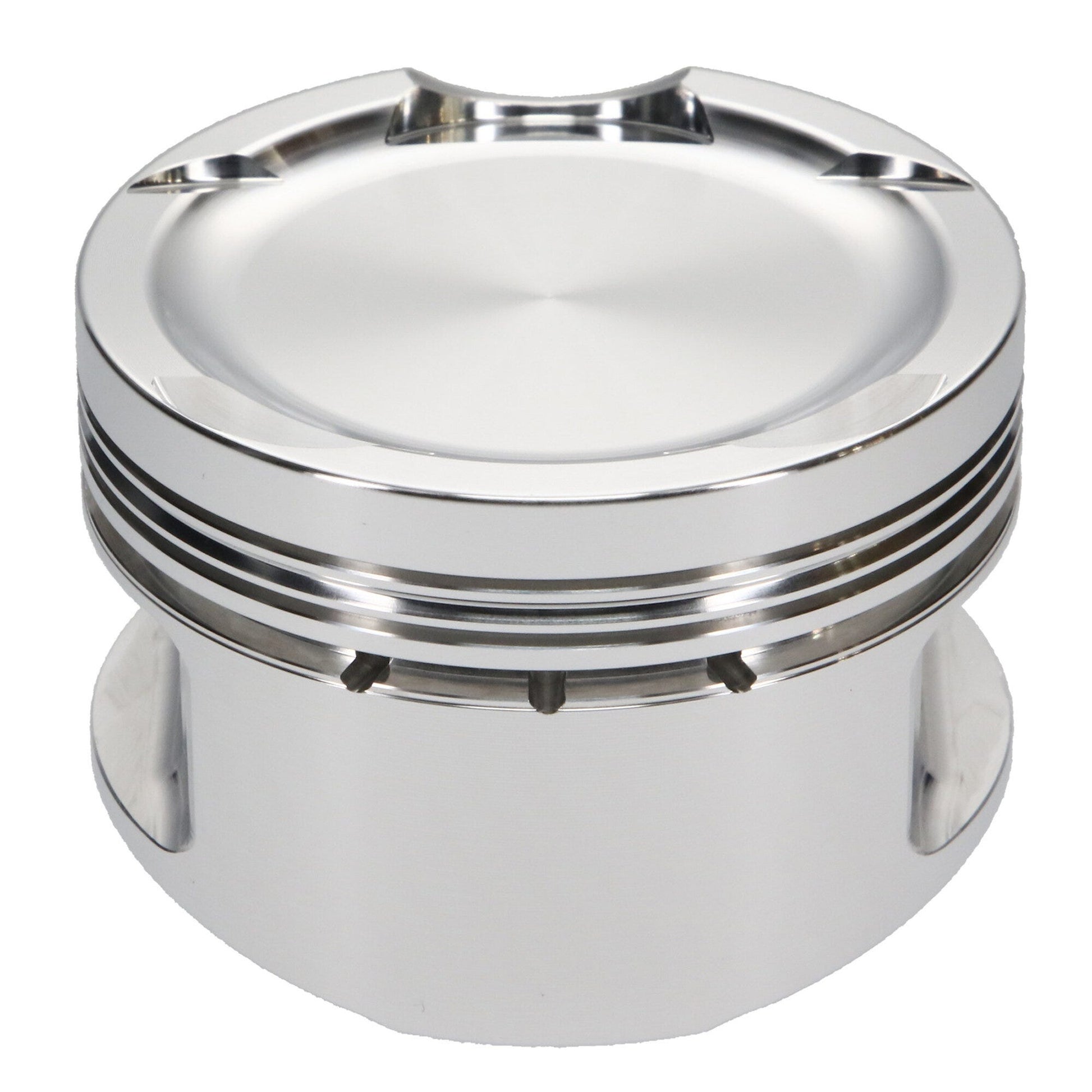

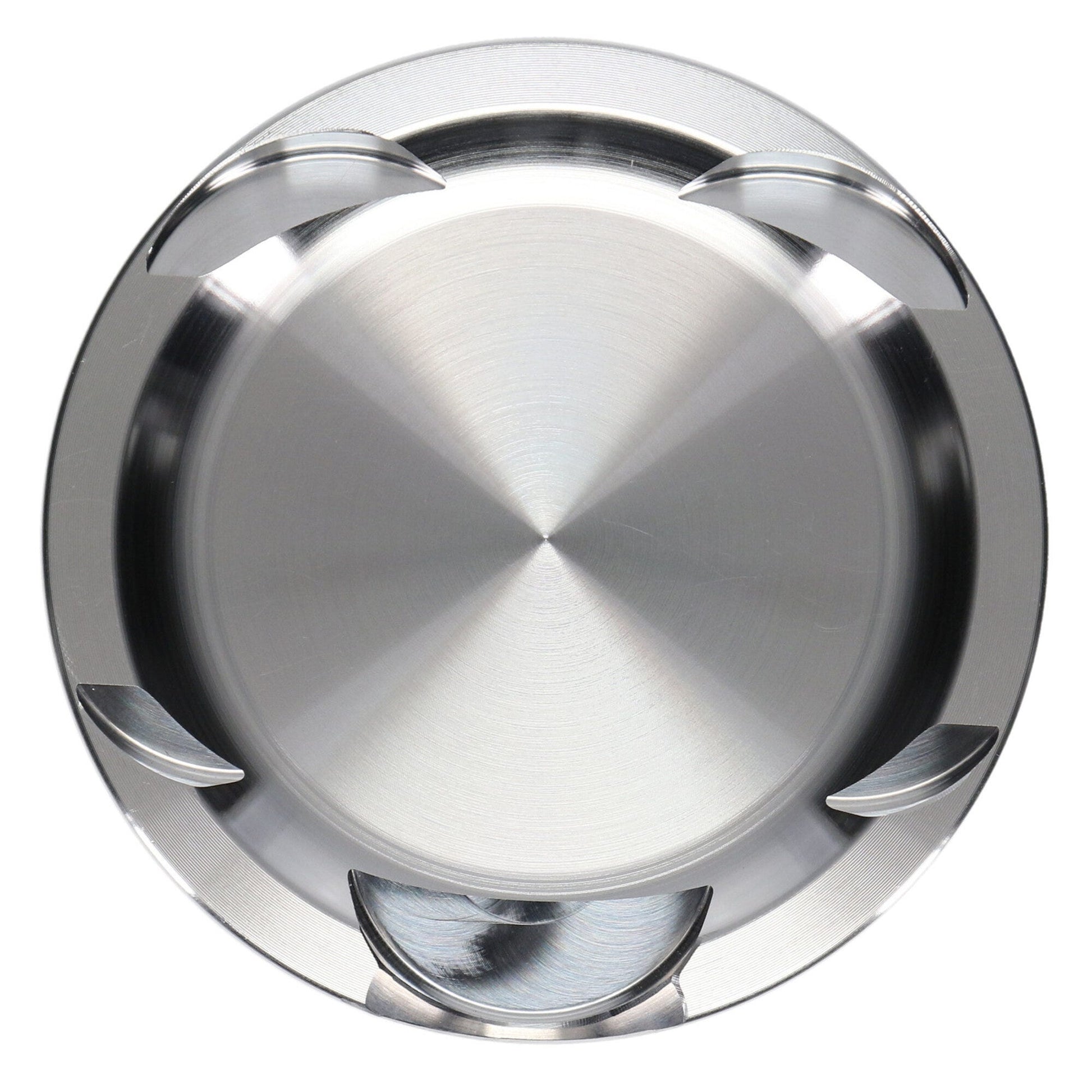

JE, Audi/VW, 1.8T 20V, 3.268 in. Bore, 8.50:1, Inverted Dome/Dish, Single Piston
| Bore Diameter | 83.00 |
|---|---|
| Compression Height | 1.286 |
| Piston Head Type | Dish |
| Piston Volume | -12.9 |
| Cylinder Head | 1.8T APH |
| Piston Pin Outside Diameter | 0.787 |
| Piston Pin Length | 2.250 |
| Piston Pin Material | 5115 |
| Ringset Included | Yes |
| Top Compression Ring Thickness | 0.04 |
| Second Compression Ring Thickness | 0.048 |
| Oil Ring Thickness | 0.111 |
| Piston Material | 2618 |
| Forging Type | Round |
| Piston Avg Weight | 310 |
| Pin Wall Thickness | 0.180 |
| Product Market | Sport Compact |
| Product Types | Engine Piston |
| Prop 65 Yes/No | Yes |
