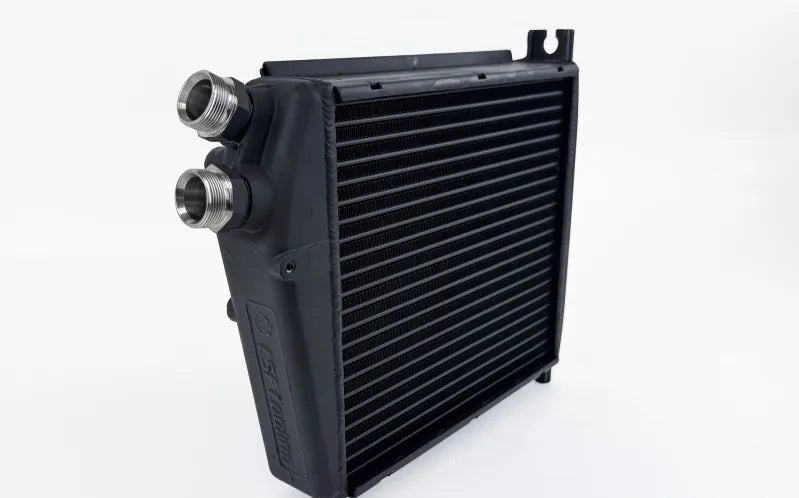

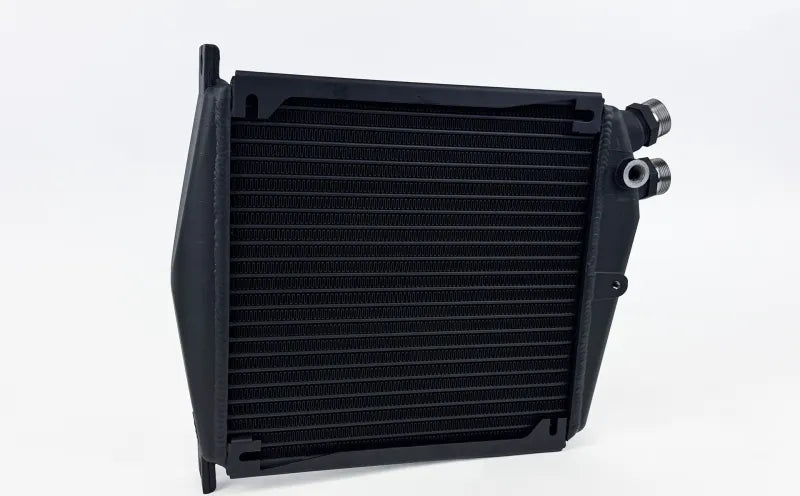

CSF Radiators Porsche 964 / 993 OEM+ Performance Engine Oil Cooler

CSF 8334 Performance Engine Oil Cooler for Porsche 964 and 993

The CSF 8334 Performance Engine Oil Cooler is engineered specifically for the Porsche 964 and 993 models, providing a modern OEM+ upgrade for the last of the air-cooled 911s. This high-performance oil cooler addresses the challenges of increased thermal demands seen in these models, ensuring optimal engine temperature management.

Key Features

• OEM+ recreation of the original Lngerer & Reich oil cooler for enhanced reliability.
• Dual pass 50mm high-performance tube and fin core, maximizing thermal efficiency.

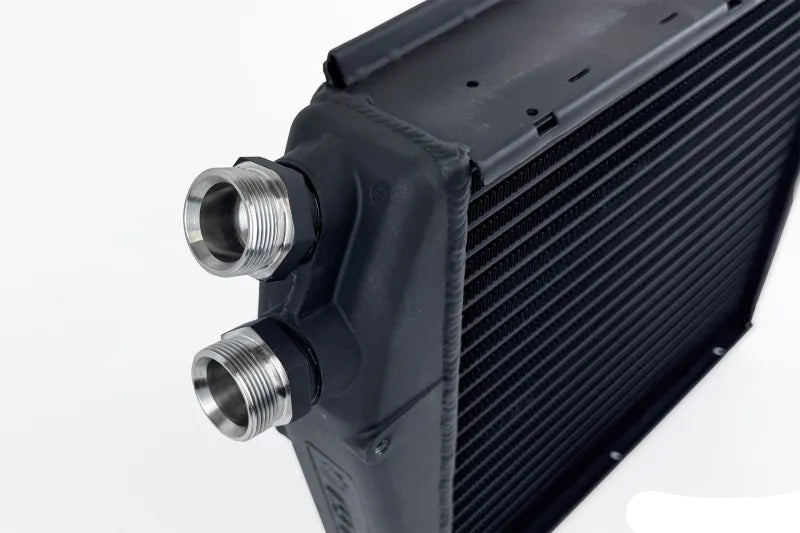

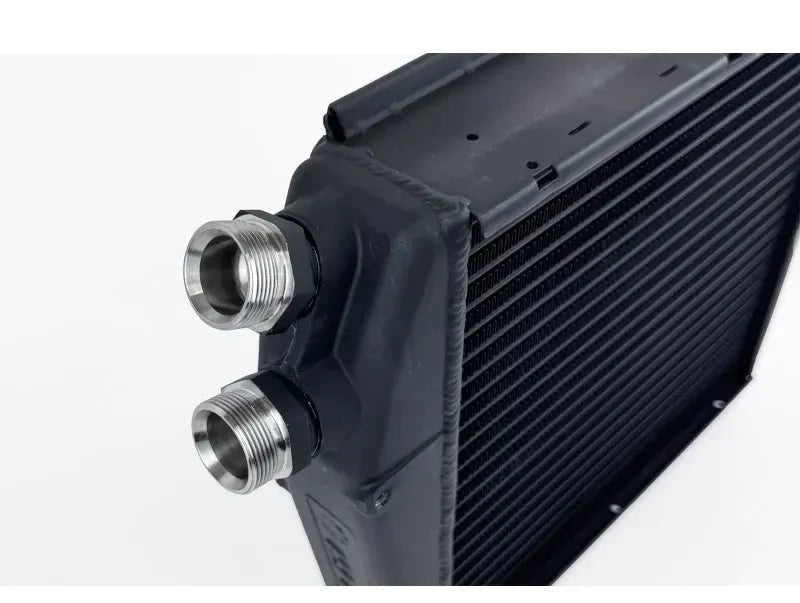

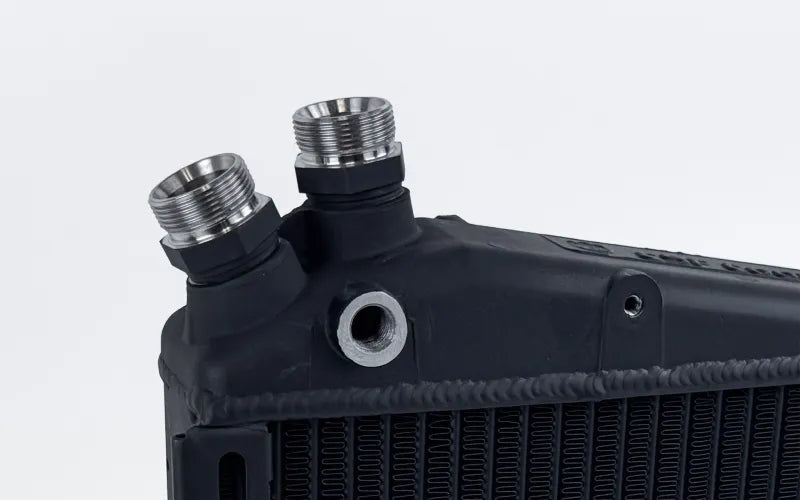

• Stainless steel "Widemouth" M30 x 1.5 high-flow fittings for improved oil flow.
• Redesigned fan shroud mounting locations simplify installation.
• Constructed from 100% TIG-welded aluminum for durability.
• Satin black finish for a sleek appearance.

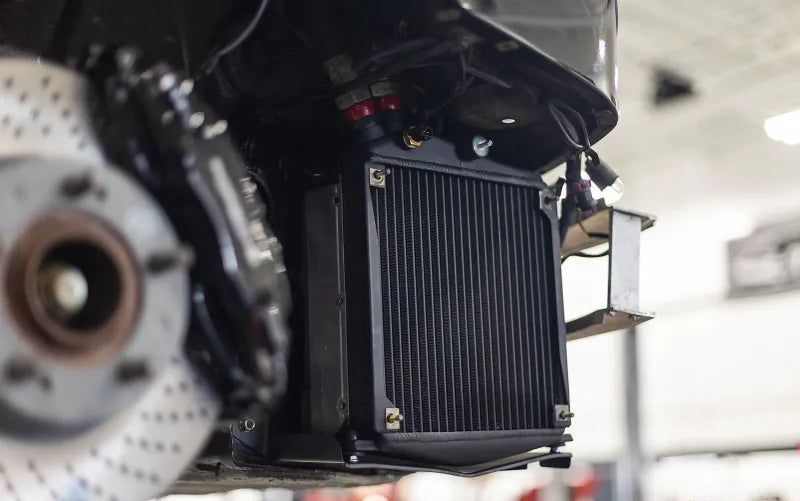

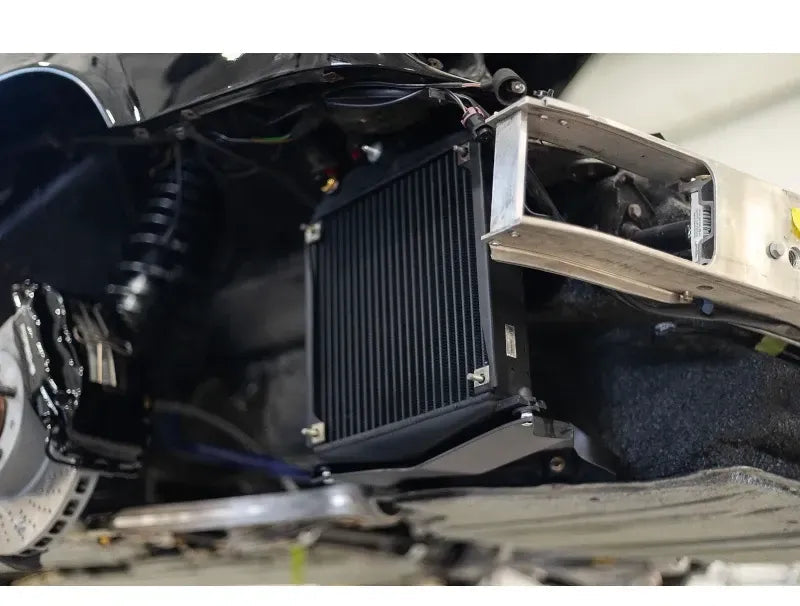

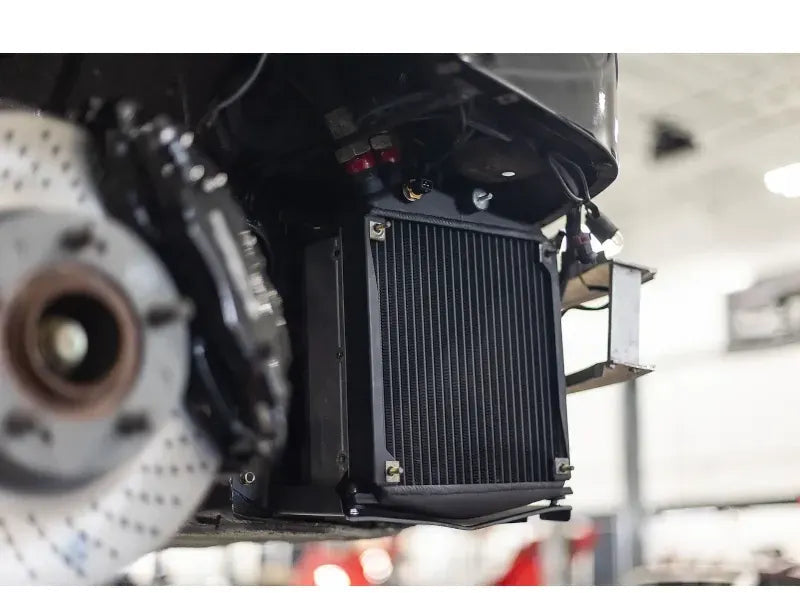

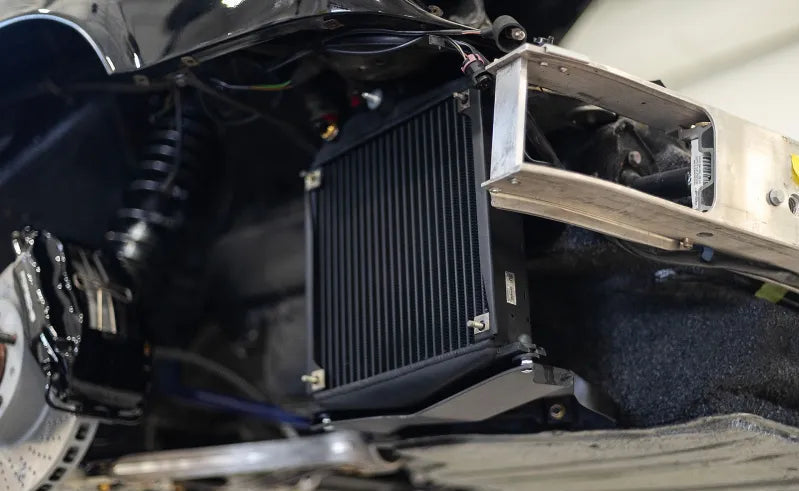

• Plug-and-play installation requires no modifications.
• Individually leak and pressure tested at 8 bar (116 psi) for quality assurance.

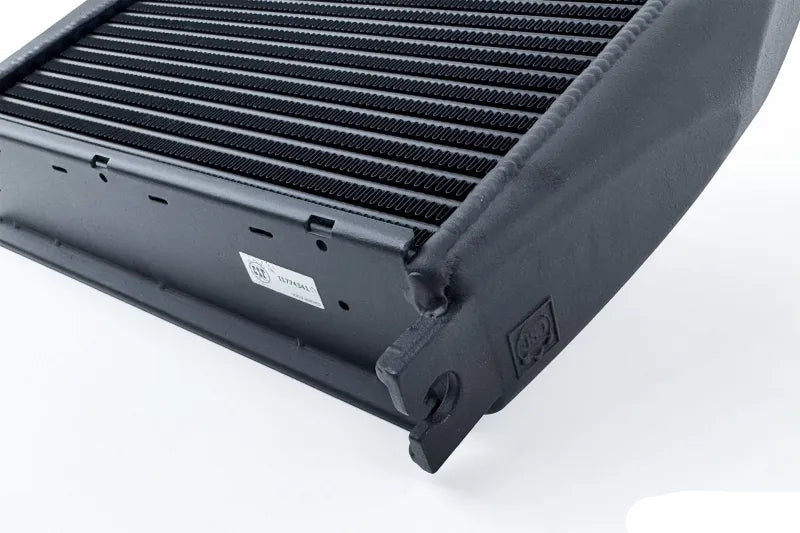

• Serialized for authenticity and quality control.
• Comes with product-specific foam inserts and a high-quality 5-ply box to ensure safe shipping.
• Includes a warranty sheet with torque specifications.
• Backed by a 10-year limited warranty.

Specifications

• Core Dimensions: 269 mm (Length) x 255.6 mm (Height)
• Core Thickness: 50 mm
• Core Volume: 3438 cc
• Number of Cooling Tubes: 22
• Cooling Fin Rows: 23
• Fin Height: 7 mm, multi-louvered design
• Core Material: Aluminum
• Tank Material: Aluminum

OEM Part Numbers

• Porsche: 964 207 220 02
• Porsche: 964 207 220 03
• Porsche: 964 207 220 04

Fitment

• Porsche 964 911 Carrera 4 - 3.6L H6 (1989-1994)
• Porsche 964 911 Carrera 2 - 3.6L H6 (1990-1994)
• Porsche 964 911 Turbo - Turbocharged 3.3L H6 (1991-1992)
• Porsche 964 911 RS America - 3.6L H6 (1993-1994)
• Porsche 964 911 Turbo 3.6 - Turbocharged 3.6L H6 (1993-1994)
• Porsche 964 911 Speedster - 3.6L H6 (1994)
• Porsche 993 911 Carrera - 3.6L H6 (1995-1998)
• Porsche 993 911 Carrera 4 - 3.6L H6 (1995-1998)
• Porsche 993 911 Carrera 4S - 3.6L H6 (1996-1998)
• Porsche 993 911 Carrera RS - 3.8L H6 (1995-1996)
• Porsche 993 911 Targa - 3.6L H6 (1996-1998)
• Porsche 993 911 Turbo - Turbocharged 3.6L H6 (1996-1997)
• Porsche 993 911 GT2 - Turbocharged 3.6L H6 (1995-1997)
• Porsche 993 911 Carrera S - 3.6L H6 (1998)
