034 Motorsports X34 Carbon Fiber Cold Air Intake for 2018-2022 Audi S4/S5 3.0 TFSI

034 Motorsports X34 Carbon Fiber Cold Air Intake for B9 Audi S4/S5 3.0 TFSI

The 034-108-1013 X34 Carbon Fiber Cold Air Intake System is engineered for the turbocharged 3.0 TFSI engine found in the B9 Audi S4 and S5. This intake system is designed to enhance the performance characteristics of your vehicle, offering measurable increases in horsepower and torque while delivering a distinctive induction sound.

Key Features

• Precision-engineered by 034 Motorsports' in-house team
• Constructed from high-quality carbon fiber for lightweight durability
• High-gloss epoxy finish for a sleek appearance
• OEM+ fitment ensures seamless integration with factory components
• Massive 5-inch inlet conical pleated cotton air filter
• CFD-optimized carbon fiber filter tube for improved airflow
• Simple installation using factory mounting grommets

Performance Specifications

Testing of the X34 intake system has shown significant gains in horsepower and torque. The system replaces the factory airbox and turbocharger inlet hose, resulting in a reduction of pressure drop at the turbo inlet.

Dyno Results

• Stock Intake: 401 HP / 424 FT-LBS Torque
• X34 Intake: 412 HP / 425 FT-LBS Torque

Peak Gains

• Horsepower Gain: 19 HP @ 4,950 RPM
• Torque Gain: 20 FT-LBS @ 4,950 RPM

Pressure Drop Comparison

• Stock Intake: Peak Pressure Drop of 2.22 PSI at 6,500 RPM
• X34 Intake: Peak Pressure Drop of 1.64 PSI at 6,500 RPM

Application

• 2018 - Present Audi S4 (B9) 3.0 TFSI
• 2018 - Present Audi S5 (B9) 3.0 TFSI

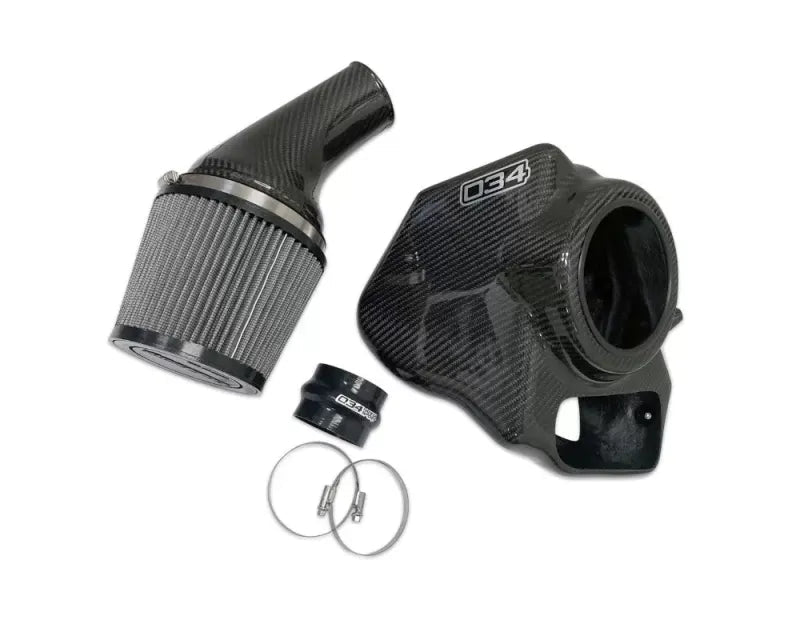

Included Components

• X34 Carbon Fiber Air Box
• X34 Carbon Fiber Inlet Pipe
• X34 Silicone Hump Hose 2.75 inches
• 034 Motorsports 5-inch Inlet Air Filter
• 034 X34 Hologram Decal
• Button-Head Cap Screws M5 x 0.8 x 25mm (x3)
• Nylon Locking Nuts M5 x 0.8 (x3)
• Worm Drive Hose Clamps M60x80 (x2)
• X34 Carbon Fiber Inlet Air Duct Not Included

Emissions Disclaimer

• This product is intended for racing and off-road use only.
• Not CARB or EPA compliant; not authorized for use in California on smog-controlled vehicles.
• Purchasing this product indicates understanding of its intended use for competition on closed roads, not for street or highway vehicles.
